MOP (MACHINE OPERATING PANEL)

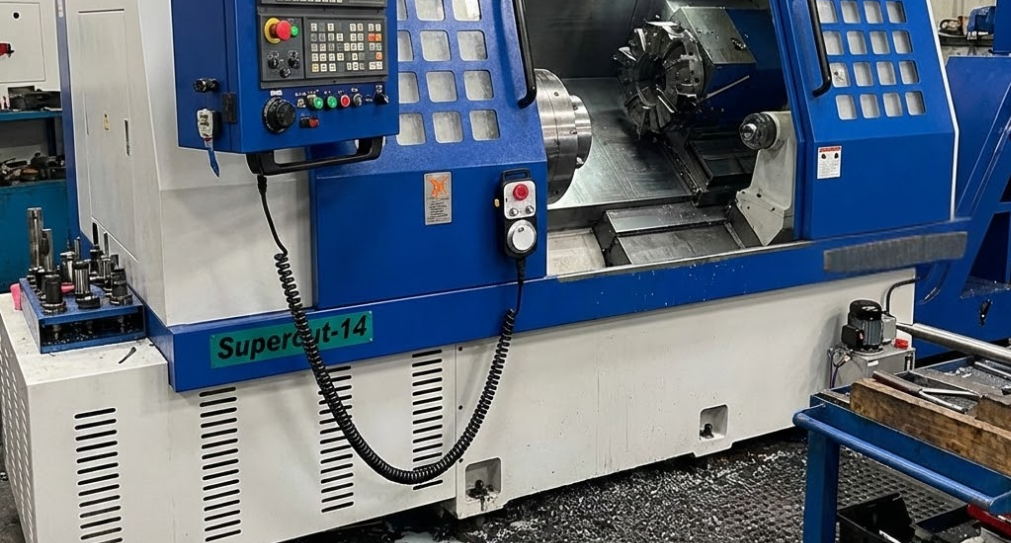

- Precision control for manual positioning in CNC machines during tool change and die setting or New JOB setting.
- Empty Aluminum Die Cast Box With Accessories
- Rotary pulse generator dial with X/Y/Z axis selector.
- Resolution selector for feed step options: X1, X10, X100.
- Rugged enclosure with a handle for portability
- Circular Hole Provided for Rotatory Hand wheel.
- Cost-effective model for replacing old or damaged MPG pendants.
CNC Machine Lamp – FAQ
MPG stands for Manual Pulse Generator. It is a handheld device used to manually position CNC machine tools with precision during:
- Tool changes
- Die setting
- New job setups
- Axis jogging (X/Y/Z)
We offer 5 different models to suit varying user needs:

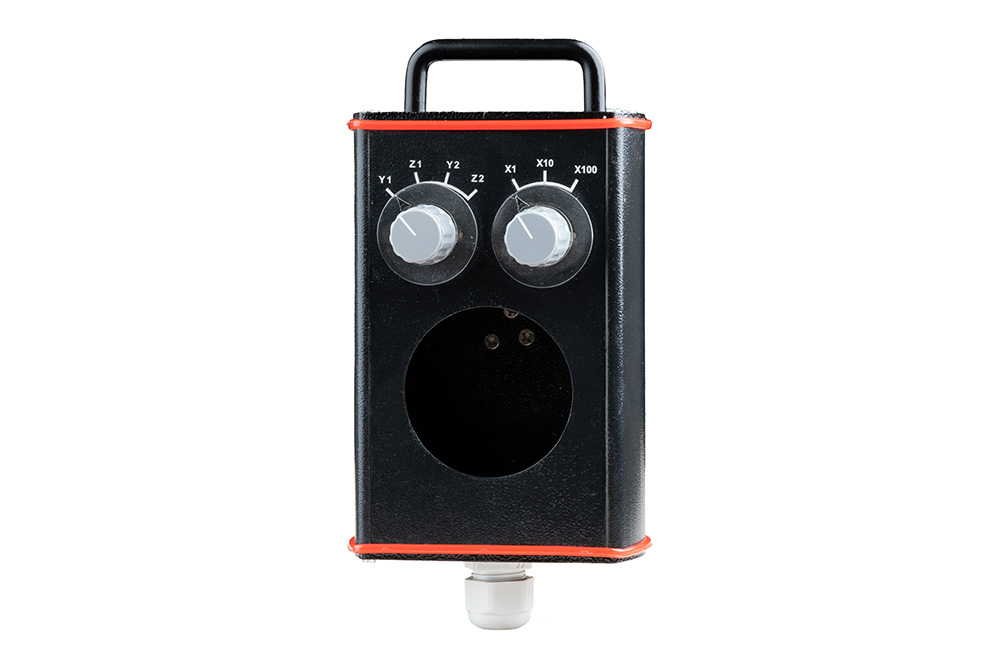

- MPG-01: Basic housing model with rotary dial
- MPG-02: Includes emergency stop button
- MPG-03: Includes CW/CCW buttons and emergency stop
- MPG-04: Complete with handwheel and spiral cable
- MPG-05: Complete with handwheel, spiral cable, E-stop, and inching button
- MPG-01: Basic empty housing with accessories
- MPG-02: Adds an emergency stop button for safety
- MPG-03: Adds both CW/CCW motion buttons and emergency stop
- MPG-04 and MPG-05 are fully assembled kits that include:
- Rotary handwheel
- Spiral cable
- Handle for portability
- Pre-fitted components for direct use
All models support adjustable resolution settings:
- X1, X10, X100 steps
This helps operators control movement accuracy based on machining needs.
- Emergency Stop Button: Available in MPG-02, MPG-03, and MPG-05
- Momentary Inching Button: Exclusive to MPG-05 for controlled enable/disable input
Yes. All models feature:
- Aluminum die-cast enclosures
- Integrated carry handles
- Rugged design for industrial environments
- Length: 2.5 meters (coiled length)
- Cores: 25-core wiring
- Benefits: Flexible, durable, tangle-free, and ideal for reliable CNC signal transmission
Yes. Our industrial-grade spiral cable is sold separately for wiring replacements or custom applications. It supports all MPG handwheel connections.
Our experts can help you select the right pendant based on your control system and machine model. Contact us at:
📞 9158654455
📧 skc@suryamarketing.com
